RCS Actuators/Dresser

Since 1968, RCS has manufactured and sold more 1/4 turn and spring return electric actuators than any other competing actuator manufacturer.  Standard RCS actuation products provide automation solutions to valve and equipment manufacturers and to end user in the commercial, industrial, marine, and power industries.  They have been utilized in a myriad of automation solutions from simple on/off control to heavy modulating and in many challenging, dirty and hazardous environments.  Engineered solutions to unique or unusual applications are also a specialty.

Romatec Corporation offers in-house repair as well as field services.

HIGH TORQUE 1/4 TURN ACTUATORS

rcs_MAR1600_mar4000_electric_actuator

MAR 1600

MAR 4000


  • Torque output from 21,000 in / lbs. to 48,000 in./ lbs.
  • Cycle times from 70 to 170 seconds.
  • Available in 120 or 230 Vac single phase, or 230 or 460 AC three phase voltages.
  • Weather-proof and explosion-proof enclosures available.
  • Suitable for two position or modulating applications.

Specification Sheet

SPRING RETURN ACTUATORS

RCS_SURE24_SURE25_spring_return_electic_actuator

Sure 24

Sure 25

  • Spring return electric actuator with 300 in./lbs. of spring-ending torque.
  • Clockwise or counterclockwise rotation available.
  • 5 or 10 Second motor cycle time, 2 second spring cycle time.
  • Available in 120 or 220 VAC, single phase power.
  • Weather-proof or explosion proof enclosures.
  • Heavy duty motor for modulating service (SURE 25 only).

Specification Sheet

RCS_SURE49_electric_spring_return_actuator

Sure 49

  • Electric Spring-Return Actuator with 600 in./lbs. of spring ending torque.
  • Clockwise or counter-clockwise rotation.
  • Available in 5, 15 and 30 second motor cycle time.
  • Spring closure time of 2 seconds.
  • Available in 24, 120 or 230 VAC, single phase voltage, or 12 or 24 VDC.
  • Weather-proof and Explosion-proof enclosure.
  • Suitable for on-off or modulating service.

Specification Sheet



RCS_Sure100_spring_return_electric_actuator

Sure 100

  • Electric Spring-Return Actuator with 1,200 in. / lbs. of spring ending torque.
  • Clockwise or counter-clockwise rotation.
  • Available in 10 or 30 second motor cycle time.
  • Spring closure times of 5 or 7 seconds.
  • Available in 120 or 230 VAC single phase voltage.
  • Weather-proof and explosion-proof enclosure.
  • Suitable for on-off or modulating service.
  • Manual override option available.

Specification Sheet



RCS_Sure150_spring_return_electric_actuator

Sure 150

  • Electric Spring-Return Actuator with 1,800 in. / lbs. of spring ending torque.
  • Clockwise or counter-clockwise rotation.
  • Available in 15 second motor cycle time.
  • Spring closure time of 5 seconds.
  • Available in 120 or 230 VAC single phase voltage.
  • Weather-proof and Explosion-proof enclosure.
  • Suitable for on-off or modulating service.
  • Manual override option available.

Specification Sheet

APPLICATION PHOTOS
RCS_application_photo_MWD_Kube_Engineering

RCS at  MWD California Chemical Facility

Tank Farm

RCS_application_photo_kube_engineering

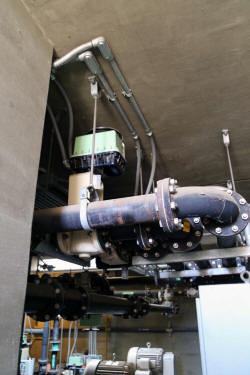

RCS Sure 100 Application Photo

rcs_electric_actuator_application_photo

RCS on indoor piping



Sludge Handling

rcs_electric_actuator_metering_valve

RCS on a Metering Valve

rcs_electric_actuator_shop

RCS shop photo

Sludge Hankdling
